Industrial Mini PC IBOX-603 Plus With Intel Core i5 6200U Processor and Fanless Design for 5*Intel i211-AT 1000M LAN

Expansion Slots : Mini PCIe, MSATA

Auto Power On : Supported

Hard Disk : 1 TB

Storage Options : 1*MSATA Slot, 1*2.5" HDD

Processor Options : Intel Celeron 3855U, Intel Core i3 6100U, Intel Core i5 6200U, Intel Core i7 6500U

Front I/O : 2*COM, 1*Power Switch

Operating Temperature : -20℃～60℃

Power Supply : DC 9～36V wide voltage Input

Rear I/O : 4*USB3.0, 1*VGA, 1*HDMI, 1*3 PIN Power Supply Phoenix Connector

Dimensions : 230*166*68mm

Network Ports : 5*Intel i211-AT 1000M LAN（Support 4*802.3af standard POE LAN）

RAM Support : Max. 16GB DDR4 1866/2133

Net Weight : 2.3 kg

Work Humidity : 5% ～ 95% non-condensing

Brand Name : MTHGH

Model Number : IBOX-603

Place of Origin : China

Display Chip : Integrated Intel HD Graphics 510 / 520

Certification : CE/CCC/FCC Class A/ROHS

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C,T/T,Western Union

Supply Ability : 10000 Set

Delivery Time : 7-10 work days

Packaging Details : Standard carton package : carton+ plastic bag+ foam+ honeycomb paperboard+ pack thread.

Serial Ports : 2 *COM

Watchdog : 0～255 level

Display Port : 1*VGA，1*HDMI

Contact Now

Industrial Mini PC IBOX-603 Plus With Intel Core I5 6200U Processor
Industrial Mini PC IBOX-603

Intel® 6th Generation Core™ i3/i5/i7 Processor

Fanless Industrial PC For Machine Vision

Fanless Mini PCs

MTHGH offers a line of quiet computers with fanless designs that operate without the need for noisy cooling fans. Typical PC cooling fans draw in dirt and dust from their operating environment, which can cause catastrophic failure or unexpected downtime.

We build high-availability computers that dissipate heat through specially designed chassis and heat pipe technology. MTHGH fanless computer products are ideal for a variety of applications including: audio/video recording, embedded control, Internet of Things (IoT), digital signage, interactive kiosks, thin clients, and human machine interface applications.

Features
  • All aluminum structure, fanless design
  • Onboard Intel Skylake-U 6th Generation Core i3/i5/i7
  • Max. Support DDR4 1866/2133 16GB RAM
  • Support 32 road Opto-couplers isolation GPIO Signal
  • Support 5*LAN (Support 4*802.3af standard POE LAN)
  • Support DC 9～36V wide voltage Input
  • Support OS:
Industrial Mini PC IBOX-603 Plus With Intel Core i5 6200U Processor and Fanless Design for 5*Intel i211-AT 1000M LAN Industrial Mini PC IBOX-603 Plus With Intel Core i5 6200U Processor and Fanless Design for 5*Intel i211-AT 1000M LAN Industrial Mini PC IBOX-603 Plus With Intel Core i5 6200U Processor and Fanless Design for 5*Intel i211-AT 1000M LAN Industrial Mini PC IBOX-603 Plus With Intel Core i5 6200U Processor and Fanless Design for 5*Intel i211-AT 1000M LAN
Specification
Model IBOX-603
Color Black (Color can be customized)
Material High-quality all aluminum, surface anodic oxidation
Processor Onboard Intel Celeron 3855U (Dual core dual threading, 1.6 GHz)
Onboard Intel Core i3 6100U (Dual core quad threading, 2.3 GHz)
Onboard Intel Core i5 6200U (Dual core quad threading, 2.3GHz, Max turbo 2.8GHz)
Onboard Intel Core i7 6500U (Dual core quad threading, 2.5GHz, Max turbo 3.1GHz)
CPU Architecture Skylake-U
RAM Support 1*DDR4 1866/2133 SODIMM RAM Slot, Max. Support 16GB
BIOS AMI EFI BIOS
Display Chip Integrated Intel HD Graphics 510 / 520
Display Port 1*VGA, 1*HDMI
Front I/O 2*COM, 1*Power Switch
Rear I/O 4*USB3.0, 1*VGA, 1*HDMI, 1*3 PIN Power Supply Phoenix Connector (Support 9～36V wide voltage Input)
5*Intel 1000M LAN, 2*18 PIN Phoenix Connector GPIO (Support Opto-couplers isolation)
Expansion Slot Support 1*MINI PCIE Slot (WIFI/3G/4G Optional), Embedded SIM Slot
Support 1*MINI PCIE Slot (Support MSATA)
Network 5*Intel i211-AT 1000M LAN (Support 4*802.3af standard POE LAN)
Storage 1*MSATA Slot, 1*2.5" HDD
Power Supply Support DC 9～36V wide voltage Input
Other Function Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog (0～255 level) (Standard version doesn't set these function)
Work Temp 0℃ ～ +50℃ (Commercial HDD), -20℃ ～ +60℃ (Industrial SSD), Surface air flow
Work Humidity 5% ～ 95% non-condensing
Certificates CE, CCC, FCC Class A, ROHS
Dimension 230*166*68mm【Not include bracket】
Net Weight 2.3 kg【Not include bracket】
Application Industrial automation, Machine vision, Transportation industry, Power monitoring, etc.
IBOX-603 Drawing
Industrial Mini PC IBOX-603 Plus With Intel Core i5 6200U Processor and Fanless Design for 5*Intel i211-AT 1000M LAN

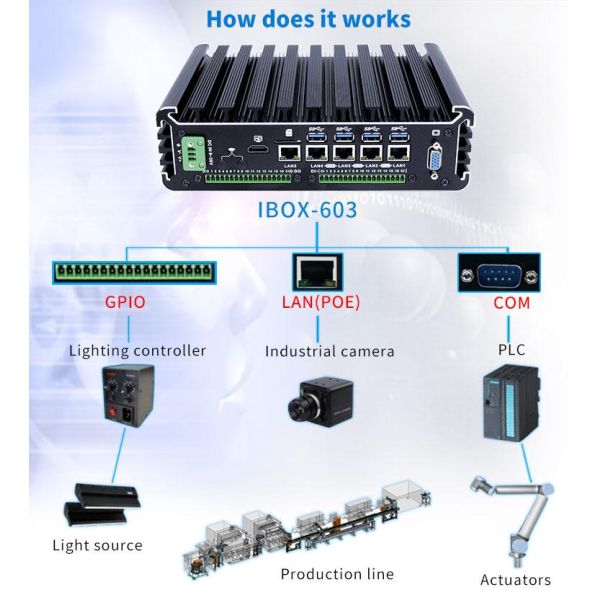

IBOX-603 Application
Industrial Mini PC IBOX-603 Plus With Intel Core i5 6200U Processor and Fanless Design for 5*Intel i211-AT 1000M LAN Industrial Mini PC IBOX-603 Plus With Intel Core i5 6200U Processor and Fanless Design for 5*Intel i211-AT 1000M LAN Industrial Mini PC IBOX-603 Plus With Intel Core i5 6200U Processor and Fanless Design for 5*Intel i211-AT 1000M LAN Industrial Mini PC IBOX-603 Plus With Intel Core i5 6200U Processor and Fanless Design for 5*Intel i211-AT 1000M LAN Industrial Mini PC IBOX-603 Plus With Intel Core i5 6200U Processor and Fanless Design for 5*Intel i211-AT 1000M LAN Industrial Mini PC IBOX-603 Plus With Intel Core i5 6200U Processor and Fanless Design for 5*Intel i211-AT 1000M LAN
